SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output

Ask Lasest Price
Brand Name :	HENGXIANG
Model Number :	MPN35
Certification :	CE,ISO9001
Price :	Consult us
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100K pieces per year
Delivery Time :	3-5 working days for sample order, 7-15 working days for mass order

Add to Cart

Product Details
Company Profile

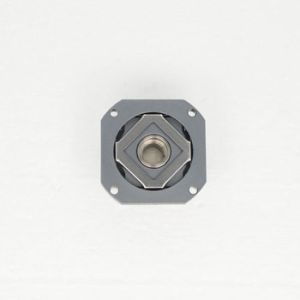

SSI Elevator Hollow Shaft Absolute Encoder Square Flange Through Hole Radial Output

Low cost absolute Hengxiang encoder square flange through hole radial output elevator encoder SSI

1. Feature: Flange encoder, absolute type, multi-turn, hollow shaft, SSI encoder,

high quality encoder chinese supplier in Shanghai.

2. Application: Servo motor, robot and other industrial automations.

3. Important parameters:

Items	Basic parameters
Brand	HENGXIANG
Encoder type	absolute encoder
External diameter	35mm
Thickness	16.2mm
Installation dimension	44.2mm diameter
Hollow shaft type	hollow hole
Hollow Shaft diameter	6mm;8mm
Bit(steps)	17-24bits(single-turn);1716-2416bits(multi-turn)
Supply voltage	DC5V ； DC8-30V
Outlet type	radial cable
Outlet type	radial socket
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
Cable length	require, but it need payment individually)
GND	not connect to encoder
starting torque	less than 5x10-³N.m
Intertia moment	less than 1.5x 10-6kg.m2
Shaft load	Radial 20N; Axial 10N
Top REV	≤6000 rpm
Environmental temperature	Operating:-20 ～+95°C(repeatable winding cable: -10°C)；storage:-25 ～+100°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Shaft Material	Stainless steel
Shell Material	Die cast aluminium
Cable length	1000mm(cable with shielding)
Certification	CE
package	Carton box
Net weight	About 70g

Parameter select guide

Certifications

FAQ

Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check
freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and
parameters, you could contact us for technical support if you have
any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your
doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western
Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
