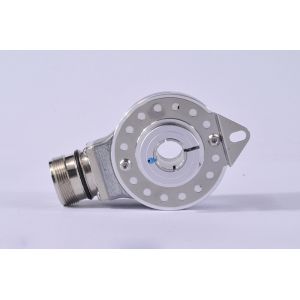

SJ50 12bits Hollow Shaft Absolute Encoder Radial High Resolution

KJ50 angel sensor absolute encoder external diameter 50mm 720ppr 10 bit CW direction hole 14mm absolute digital encoder

About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.

Product Paramenters

Items	Basic parameters
Brand	HENGXIANG
Encoder type	absolute encoder
External diameter	51mm
Thickness	29mm
Installation dimension	40mm diameter
Shaft length	16mm
Solid Shaft diameter	8mm D shape
Bit(steps)	5 bit;6 bit;7 bit;8bit;9bit;10 bit;11 bit;12bit
Supply voltage	DC5V ； DC8-30V
Outlettype	radial cable
	radial socket
	radial cable with plug
Count direction	counterclockwise
	outside control direction
	clockwise
Interface	NPN low level effective
Interface	NPN high level effetive
Protection grade	IP50 ; IP65
Cable length	1M (cable length could be added appropriately by
Cable length	require, but it need payment individually)
Consumption current	100mA MAX
Top response frenquency	100KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Output code	gray code
Precision	360/(resolution x 4)
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
starting torque	less than 5x 10-3N.m
Intertia moment	less than 3x 10-6kg.m2
Shaft load	Radial 50N; Axial 30N
Top REV	3000RPM ;IP65≤2000r rpm
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+85°C；storage:-25 ～+90°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Certification	CE
package	Carton box
Net weight	About 300g (with package)
