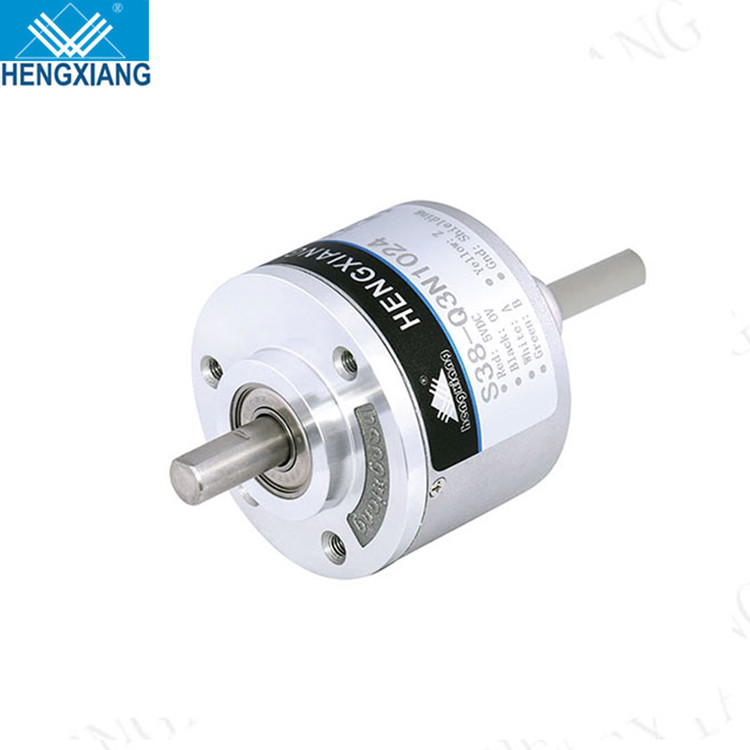

S38 can totally replace the Omron encoder E6B2-CWZ5B low price high
quality solid shaft
How to choose the replacement encoder of E6B2-CWZ5B:
1. Please take a quick view of the model below to confirm the
resolution.
2. Then the price and production time will be offered immediately.
3. Please provide the address and postal code, we will offer
shipping cost and lead time for you,
4. After your confirmation, we will make PI(proforma invoice) for
you.
5. After receiving your payment, we will start product your product
immediately.
6. We will notify you of the courier number before the production
is completed and the goods are sent out.
Some Related S38 encoder model number
S38-T6E600 DC12V
S38-T6E720 DC8-30V
S38-T4E720 DC8V
S38-T6E1024 DC30V
S38-T6E2500 DC24V
S38-T6E5000 DC8-30V
S38-T6E10000 DC10V
S38-T4E1200 DC12V
S38-T6C720 DC5V
S38-T6C1024 DC5V
S38-T3N1024 DC5-30V
S38-T6E512 DC12V
The same installation of S38 and E6B2-CWZ5B
Specifications
| ITEM | PARAMTERS |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 38mm |
| Thickness | 28mm |
| Shaft length | 13mm |
| Solid Shaft diameter | 6mm(D shape) |
| Resolution | 50;60;66;100;200;250;256;300;360;400;450;500;512; |
| 600;700;720;800;900;1000;1024;1200;2000;2048; |
| 2500;5000；8192；10000；16384 |
| Output mode | NPN&PNP |
| Voltage output |
| Push-pull output |
| Difference output(TTL,HTL,RS422) |
| Output phase | Phase A,B,Z,A-,B-,Z- |
| Shaft Material | Stainless steel |
| Shell Material | Dia cast aluminium |
| Cable length | 1000mm(cable with shielding) |
| Certification | CE |
Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention
patents and 17 utility model patents, CE-ATC certificate, ISO
Quality Management System Certification, QMS Quality Management
System certificate, and pioneer enterprise
We passed the national quality management system certification with
all the items tested conforming to it, thus gaining the
professional production qualification.
Our History
In 1988-1998, The elder generation produced optical products in a
small workshop in Dongtou District, Wenzhou, laying a solid
foundation for the subsequent development of encoders and infrared
optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory
as a senior engineer, engaged in optical research and development,
and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of
state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was
formally established, and the first S38 series products are
independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets,
and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents
and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba
Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International
Industrial Park ,Obtained QA international certification and QMS
quality management system certification.
In 2021, Obtained 14 new utility patents.
Shipment
There are two method of shipment right now,
One is our factory check freight cost from FedEx, UPS, DHL,TNT,
etc, for you to get the cheapest quotation and shipping date.
The other is you offer your own courier account when ordering, so
we can use your express account to arrange the shipment.
