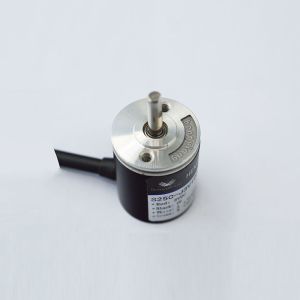

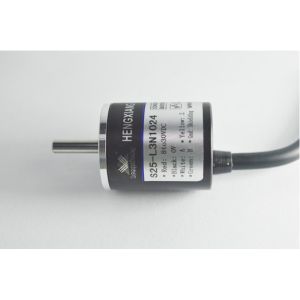

S25C 36ppr small encoder incremental encoder supplier resolution up to 2500p/r encoder
-
Diameter 25mm shaft 4mm type incremental rotary encoder
Why choose "HENGXIANG" encpder?1.HENGXIANG brand--The trustworthy partner
2.CE approved--advantaged product quality;
3.Fast delivery--strong stock product ability;
4.Factory directly provide a competitive price;
5.One-stop service--for your efficient purchasing experience;
6.OEM design accepted--customized design, your own brand accepted.
| Items | Basic parameters |
| External dimensions | External diameter: 25mm |
| Thickness: 32mm |
| Solid shaft diameter: 4mm(D shape) |
| Encoder type | Incremental encoder |
| Resolution | 36;50;60;100;200;250;300;360;400;500;512;600;625;720;1000;1024;1200;1250;1440;2000;2048;2500 |
| Output phase | Phase A,B,Z,A-,B-,Z- |
| Supply voltage | DC5V; DC8-30V |
| Outlettype | Cable out from side |
| Cable out from back |
| Output mode | NPN&PNP |
| Voltage output |
| Push-pull output |
| Difference output(TTL,HTL) |
| Environmental temperature | Operating temperature: -20~+80° (Non icing) |
| Storage temperature: -25~+85° (Non icing) |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Protection grade | IP50 |
| Cable length | 1M (cable length could be added appropriately by |
| require, but it need payment individually) |
| Consumption current | 100mA Max |
| Allowable ripple | ≤3%rms |
| Shaft Load | Radial: 10N; Axial:5N |
| GND | not connect to encoder |
| Slew Speed | ≤5000rpm |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| Mark to Space ratio | 45% to 55% |
| Top Resonse Frequency | 100kHz(OC);200KHz(TTL);300KHzHTL) |
| Shell Material | Alumlnlum alloy |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| Shaft Material | Stainless steel |
| Vibration(endure) | Amplitude 0.75mm,10-55Hz,2 hours for X/Y/Z direction individually |
| Shock(endure) | 49/m/s2,11ms three times for X,Y,Z direction individually |
| package | Carton box |
| Net weight | About 60g |
| Certification | CE |
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
