KN35 Through Hole Encoder 1024ppr Line Driver Output

Ask Lasest Price
Brand Name :	HENGXIANG
Model Number :	KN35
Certification :	CE,ISO9001
Price :	Consult us
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100K pieces per year
Delivery Time :	3-5 working days for sample order, 7-15 working days for mass order

Add to Cart

Product Details
Company Profile

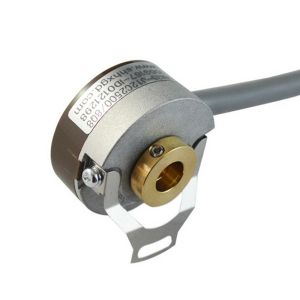

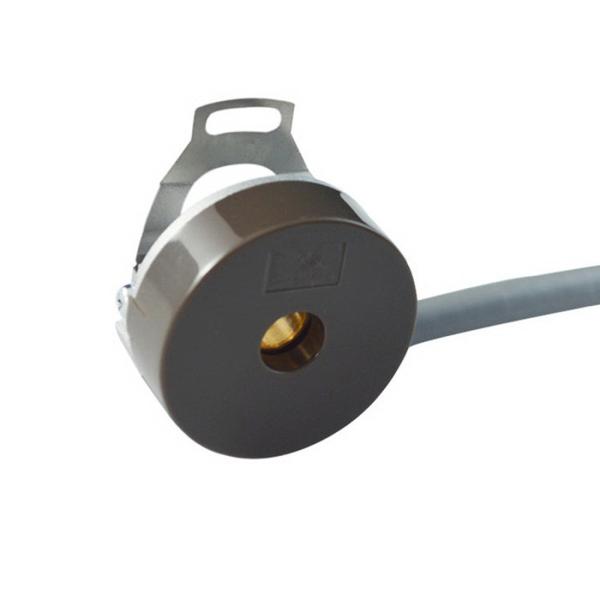

KN35 Through Hole Encoder 1024ppr Line Driver Output

KN35 Through hole encoder external diameter 35mm shaft 6mm 1024ppr line driver output

Product Description

Part number of KN35 series encoder

KN35-J12C1024/6Q6 DC5V

KN35-J2N1024Q8

KN35-J3V2500Z7

KN35-J4E2048B6 DC12V

KN35-J6C3600B8 DC5V

KN35-J12E5000/6Z7 DC12V

KN35-J2V7200Q8

KN35-J3F5000Q6 DC8V

KN35-J4C10000B6

KN35-J6E14400B8

KN35-J12C4096/4Z7 DC5V

Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)

KN35 encoder Product Information

Items	Basic parameters
Encoder type	Incremental encoder
Brand	HENGXIANG
External diameter	35mm
Thickness	18mm
Installation dimension	R13.5mm, R14.5mm, R20mm
Hollow shaft type	blind hole; through hole, taper hole
Hollow shaft diameter	6mm,7mm;8mm;10mm
Resolution	1024;2048;2500;3600;5000;7200;10000;14400
Resolution	1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8--30V
Outlet type	Cable out from side
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
	TTL(DC5V) phase ABZ are back of phase UVW
Protection grade	IP40
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material	die cast aluminum
Certification	CE
package	Carton box

About Our Factory

Own brand of "HENGXIANG" encoder
Has ISO9001:2000 Quality Management System Certificate and CE Certification
Invention patents five and utility model patents five
Passed Shanghai New and High-tech Achievements Transformation Project.
Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
Located in Shanghai city
20-30 experienced workers

Applications

Petrochemical industry
Pharmaceutical industry
Food industry
Aviation and aerospace industry
Architectural decoration industry
Oil and gas industry
FFS machine
VFFS machine
Packing machinery
Capsule filling machine
Pharmaceutical machine
VVVF motor
DC motor
Stepper motor

Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
