Cheap price encoder 35mm dc servo stepper motor encoder with hole shaft

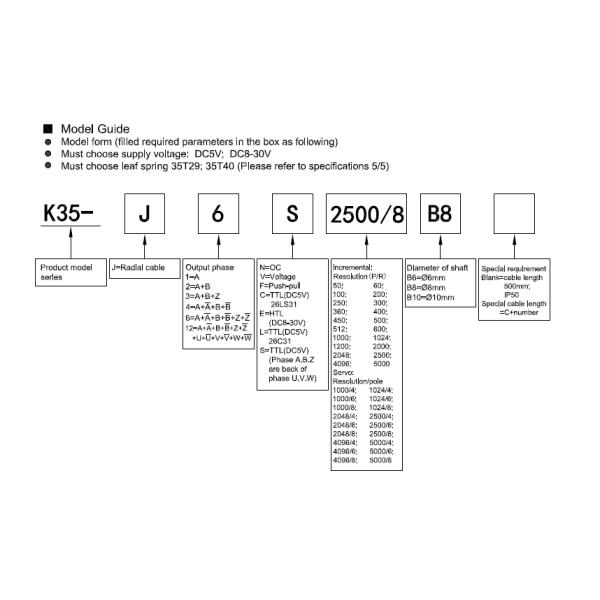

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	35mm
Thickness	35mm
Installation dimension	40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft type	blind hole
Hollow shaft diameter	6mm,8mm;10mm (Depth 15mm)
Resolution	50;60;100;200;250;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500;4096;5000
	1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2000/4;2000/6;2000/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V & DC8--30V
Outlettype	Cable out from side
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
	TTL(DC5V) phase ABZ are back of phase UVW
Protection grade	IP50
Cable length	500mm
Consumption current	120mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
Mark to Space ratio	45% to 55%
starting torque	less than 5.9x 10-3 N.m
Intertia moment	less than 1x 10-6kg.m2
Shaft load	Radial 30N; Axial 20N
Top REV	5000RPM
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+85°；storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material	Dia cast aluminium
Certification	CE
package	Carton box
Net weight	About 100g (with package)

Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.

More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.

Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise, specializing in the creation, research, production, and marketing of high-precision optical encoders.

We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products.

We founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation.

We mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
